Avec la technologie ORBIS™

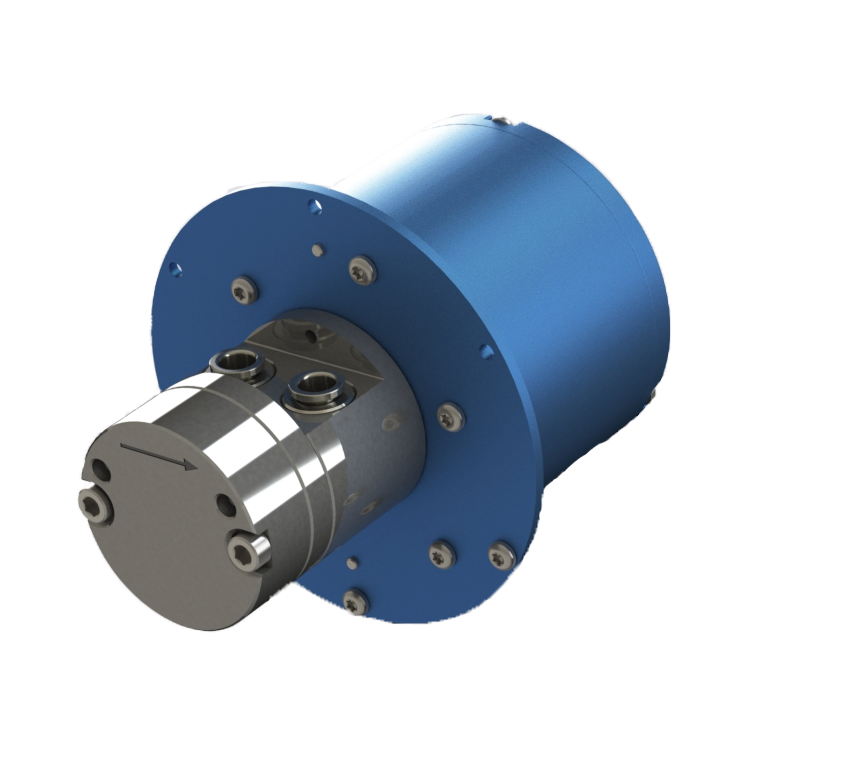

Pompes série D avec technologie ORBIS™

Introducing a New Daring Solution D Series powered by ORBIS™ Technology

Suggested Applications: Clinical Chemistry, Continuous Ink Jet, Dialysis Equipment, Laser Cooling, Slide Staining

Flow range up to 42 GPH (up to 160 LPH)
Differential Pressure to 80 PSI (5 BAR)
System Pressure to 150 PSI (10 BAR)
Viscosity 0.3 CPS to 2,000 CPS

Contactez-nous

Demander un devis

Fonctionnalités
Avantages

Fonctionnalités

Tuthill Pump Group has drawn on over 125 years of positive displacement pump design and manufacturing experience to solve our customers’ most challenging problems.

Building on a vast knowledge of hydraulics, mechanics, and electronics comes proven D Series pumps powered by ORBIS Technology. ORBIS Technology enhanced drive solution offers an integrated brushless DC motor with closed-loop control delivering performance that satisfies a high variety of applications in a compact design with exceptional reliability and extended life. D Series external gear pumps are known for their seal-less construction and non-pulsing flow which makes them perfect for precise circulating, dosing, and metering applications.

If the application requires a leak-free, compact, and technically advanced pump, Tuthill’s D Series pumps with ORBIS Technology is the solution.

Robust D Series
Platform Compact Footprint
Only Static O-Ring Seals
Available Integrated Push-to-Connect Fittings
Neodymium Driven Magnet
Closed-Loop Speed Control
Variety of Control Options

Avantages

ORBIS Technology utilizes a closed-loop speed control system that achieves a set point for speed very quickly and holds this point independent of load which ensures fluid delivery will be consistent regardless of application and system variables.

Standard product supports four-wire and two-wire configurations. The four-wire configuration allows speed control of 0 to 5 volts from 800 to 3600 RPM, tach out for speed monitoring, reversing control, as well as fault-out and current-out. An alternate simplified two-wire configuration can easily replace a brushed motor in OEM applications.

Tuthill’s robust D Series platform has proven performance and long life of up to 20,000 hours. The pump is driven by a Neodymium magnet that delivers 85 mNm of torque to cover a wide range of applications. The compact footprint of ORBIS pump and motor allows it to integrate into almost any application. Static O-Ring seals are leak-free and make field repair with service packs simple. Also, optional integrated push-to-connect tube fittings reduces installation time by at least 50% and saves additional space compared to traditional ports.
