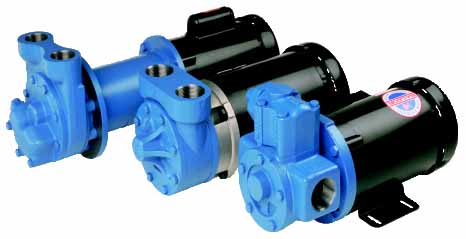

Circulation Pumps - C Series

Model: 2C, 3C, 4C, 5C, 6C

Application(s): Lubrication, Fluid Transfer, Hydraulics, High Temp Applications

Pressures to 300 psi (20.7 bar)
Temperatures to 375°F (191°C)
Viscosities from 32 SSU to 25000 SSU (1 to 5394 cst)
For speeds above 1800 RPM and/or viscosities above 25000 SSU consult factory

Request a Quote

Specifications
Downloads

Specifications

C Series Pump Specifications
Model	USGPM		Nominal Flow Rate	L/MIN		RPM
2C	9.5	@	1800 RPM	36.0	@	1800 RPM
3C	18.0	@	1800 RPM	68.1	@	1800 RPM
4C	36.0	@	1800 RPM	136.3	@	1800 RPM
5C	60.0	@	1800 RPM	227.1	@	1800 RPM
6C	84.0	@	1800 RPM	310.4	@	1800 RPM

Downloads

C Series Master

Circulation Pumps - C Series

Model: 2C, 3C, 4C, 5C, 6C

Specifications

Downloads

C Series Master

I&O C Series Pumps

LubeTech Brochure
